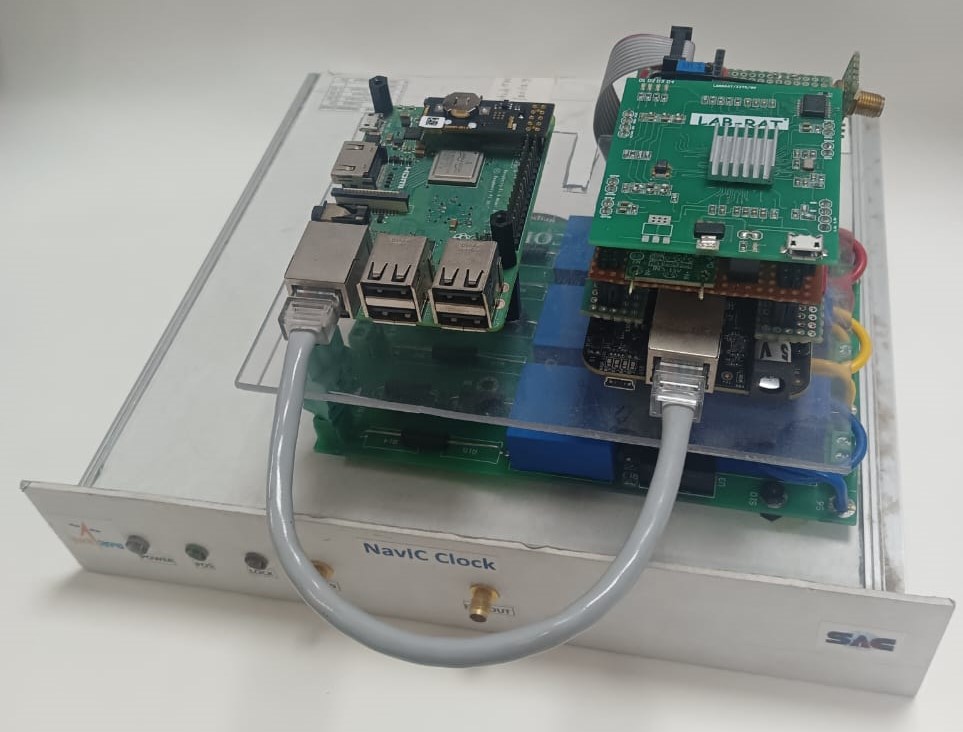

Micro PMU
Micro-PMU measures time-synchronized magnitude and phase angle of power system grid voltage and current, offering higher accuracy (TVE < 0.01%) and higher reporting rate compared to transmission PMUs.
Patent Granted
Patent No: 410521 for innovative SOC design
Dual Satellite Sync
NaVIC & GPS for backup time synchronization
SOC Architecture
Phasor processing & communication on a single chip
High Reporting Rate
100 measurements/sec (IEEE C37.118.2011)
Technical Specifications
High Precision ADC
Uses 20-bit ADCs to collect 512 digital samples in one power cycle for superior measurement accuracy.
5G Integration
Tested within railways electrical network with 5G technology to enhance real-time disturbance detection.

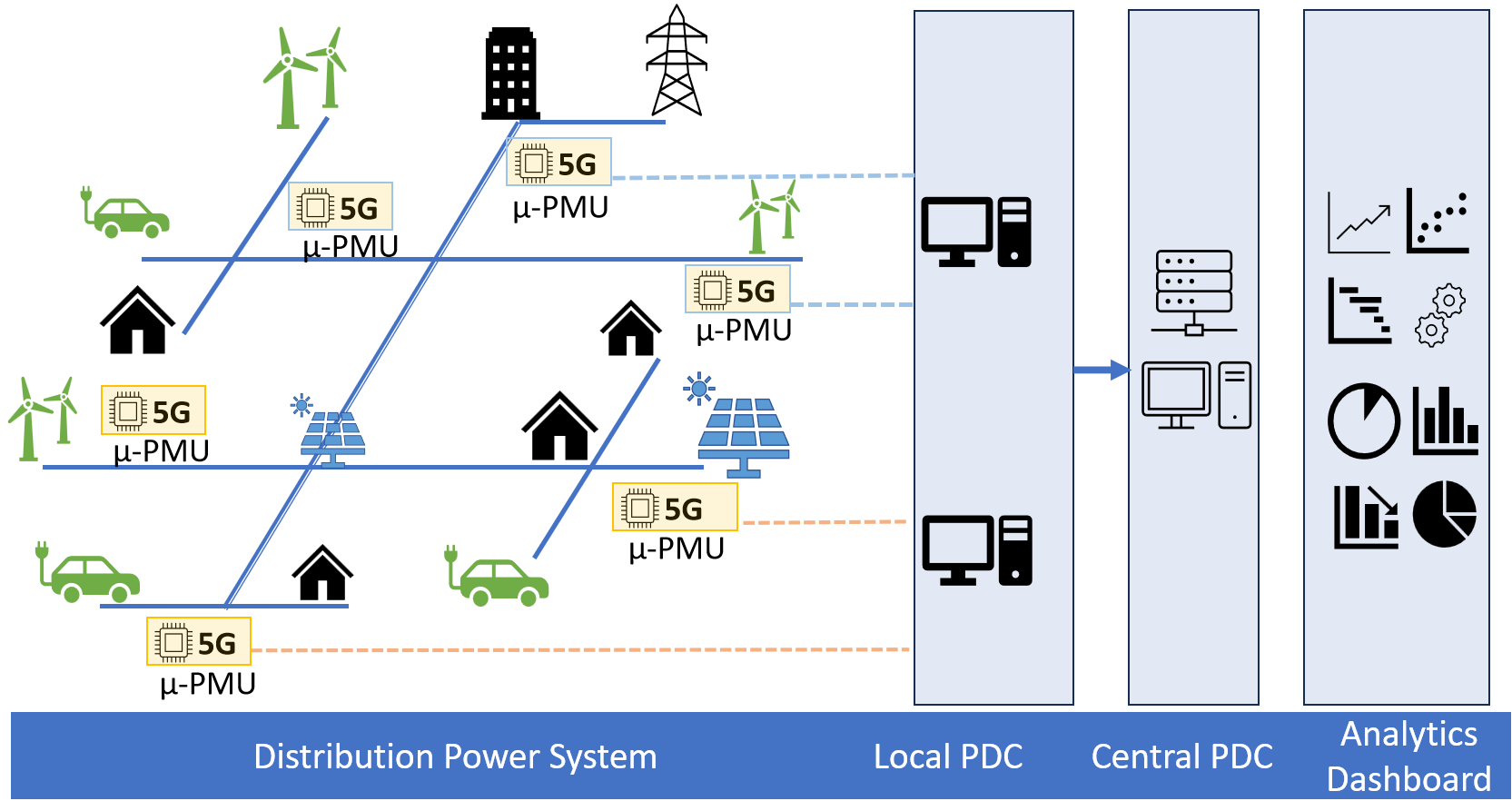

Monitoring using Micro-PMU
Advanced monitoring for power system analysis and grid stability assessment.
Micro PMU – Product Sheet
View the complete technical product sheet.
