Feeder Monitoring System
The Feeder Monitoring System provides real-time visibility into distribution feeder performance, enabling utilities to monitor electrical parameters, detect faults, reduce losses, and improve operational reliability.
Modern power distribution systems require intelligent monitoring tools capable of continuous analytics, automated alerts, and operational insights. Traditional monitoring approaches lack real-time diagnostics, making it difficult to identify abnormal conditions and prevent outages.
Real-time Monitoring
Continuous feeder visibility with live operational monitoring
OTA Firmware Updates
Over-the-air firmware upgrades for easy maintenance
4G Communication
Reliable 4G connectivity for remote feeder communication
Power Failure Backup
Maintains system reliability during power interruptions
Multiple MFM Connectivity
Supports integration with multiple multifunction meters
Theft & Fault Detection
Detects abnormal feeder conditions, faults, and energy theft events
Problems Addressed
- No real-time visibility of feeder-level data
- Manual monitoring leads to delays and errors
- Difficulty in tracking voltage, current, and energy parameters
- Lack of centralized data access for analysis
- Inefficient fault detection and response
Technical Details
Monitoring Parameters
- Voltage (Phase-wise)
- Current (Phase-wise)
- Active / Reactive / Apparent Power
- Power Factor & Frequency
- Energy Monitoring (kWh / kVAh)
Operations
- Tracks feeder performance and energy flow
- Device polls meters every 15 minutes
- Processes and transmits data to server
- Stores backup locally if network fails
Solution & Architecture
The Feeder Monitoring System uses a Communication Module (CM) integrated with MFMs via RS-485 (Modbus).
- Collects real-time electrical data
- Processes data using embedded MCU
- Sends data via 4G GSM communication
- Displays insights on cloud dashboard

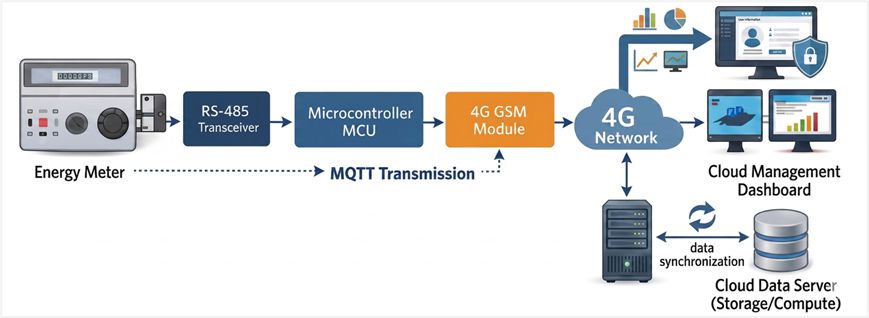

System architecture showing feeder monitoring communication workflow
Feeder Monitoring System – Product Sheet
View the complete technical product sheet.
For more technical details, reach out to our team
